The new Lapis range from Salice is made of two covers which move with the hinge elements synchronously, hiding the technical components and enriching the product with refined aesthetics, far from the traditional geometries of furniture hinges.

Tech Details

Half overlay hinge - 9mm crank
Wood screw fixing (not supplied)
To suit door thickness 16-26mm
35mm diameter cup
13.5mm deep cup
110 Degree opening
Possible drilling distance (K): 3mm - 6mm

Lapis is sold as a complete unit (not pair, please select two for that), just select the finish of cover you desire using the drop-down box and you're good to go. That includes:

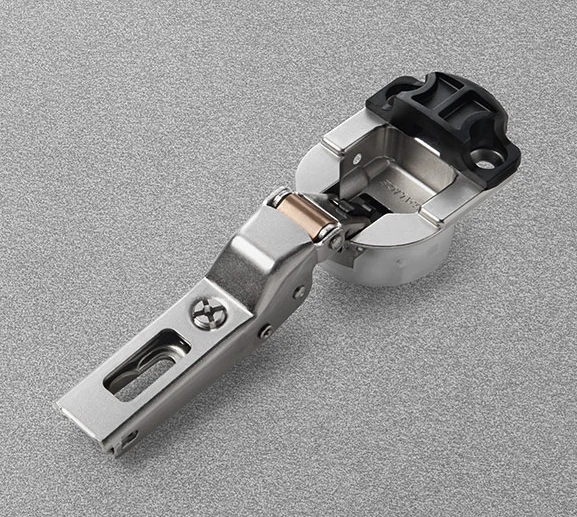

C716GD9 Silentia 9mm Crank Half Overlay Soft Close Hinge
0mm Clip-On Mount Plate - BAPGM09
Arm Cover
Cup Cover

Cover Finishes Available from stock:

Metal Black (P7A9A10 & P&SXA10SN)

We can also order the following covers in a as special order, but there would be a minimum order quantity applicable. Please email us at sales@salicedirect.com to enquire.

Cover finishes available to order:

Champagne (P7A9A0C & P7SXA0CSN)
Glossy Chrome (P7A9A06 & P7SXA06SN)
Glossy Metal Black (P7A9A0N & P7SXA06SN)
Stainless Steel (P7A9A0I & P7SXA0ISN)
Graphite (P7A9A05 & P7SXA05SN)
Glossy Gold (P7A9A08 & P7SXA08SN)
Old Brass (P7A9A07 & P7SXA07SN)
Matt White (P7A9A11 & P7SXA11SN)
Satin Gold (P7A9A1W & P7SXA1WSN)
Black (P7A9AA3 & P7SXAA3SN)
Satin Chrome (P7A9A09 & P7SXA09SN)

Downloads

Lapis Series 700 Technical Information

Dimensions and Assembly Instructions

Salice Lapis Hinges

Salice Silentia+ C716AE9 Lapis Hinge Full Overlay Soft Close with Covers

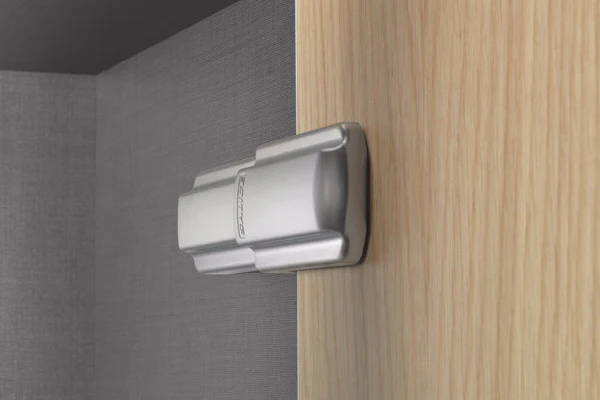

Salice Silentia+ C21BAE9 Lapis Hinge for Thicker Doors Full Overlay Soft Close with Covers

Salice Silentia C716GD9 Lapis Hinge Half Overlay Soft Close with Covers

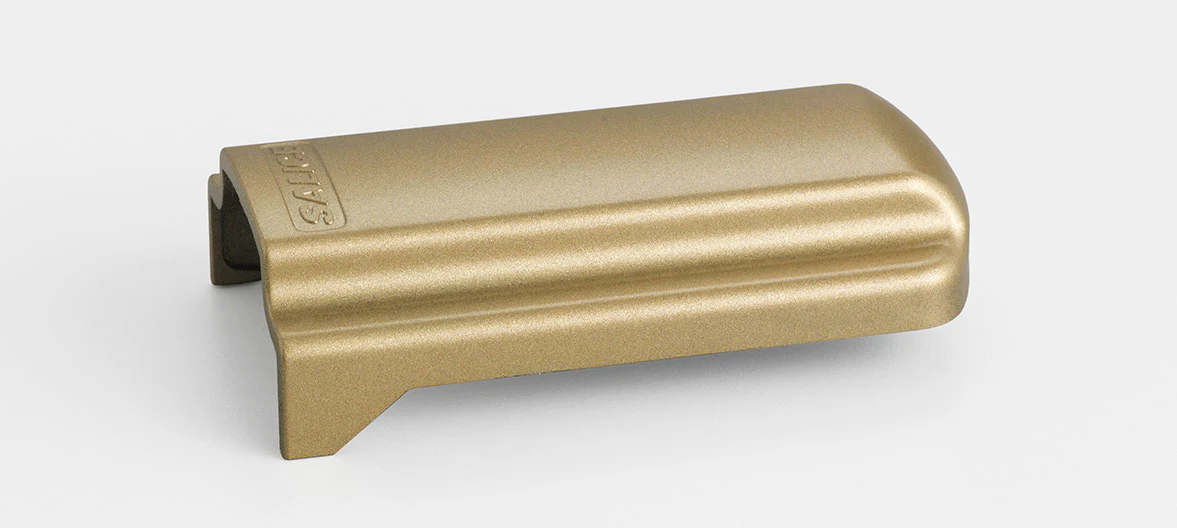

Salice Lapis Cup Cover Satin Gold - P7SXA1WSN
